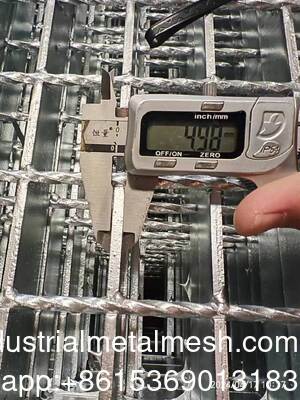

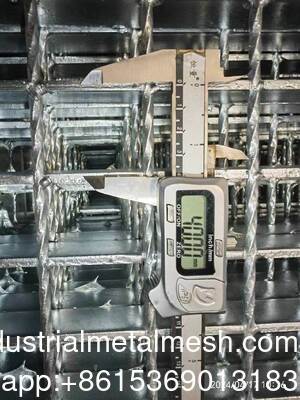

Mild Steel Light Steel Structure Platform Walkway Forge-Welded Bar Grating

Image Grand : Mild Steel Light Steel Structure Platform Walkway Forge-Welded Bar Grating

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	Dimpled Hole Metal Sheets
Numéro de modèle:	Plaques métalliques à trous creux

Conditions de paiement et expédition:

Quantité de commande min:	10Pièces
Détails d'emballage:	Palettes
Délai de livraison:	15-18 jours
Conditions de paiement:	30% TT à l'avance, solde avant chargement
Capacité d'approvisionnement:	1000 pièces

Contact

Description de produit détaillée

Composition chimique:	Fe, C, SI, manganèse, S, P	Alliage ou pas:	Non-allié
Capacité de solution de projet:	conception graphique, conception de modèles 3D, solution totale pour projets	Application:	Villa
Traitement de surface:	Galvanisation à chaud, peignant ou non traité	Longueur de grille:	1000mm
Largeur de grille:	800 mm	Rapport de l'épaisseur de la largeur X de barre:	25x3mm
Rapport de la forme de barre:	Tout simplement, type dentelé grille en acier de barre d'I de style	Forme de barre de traverse:	rond, tordu, forme de barre
Taille du maillage:	30x100mm	E-mail:	devin@industrialmetalmesh.com
WhatsApp:	+8615369013183
Mettre en évidence:	mild steel bar grating , light steel structure walkway , forge-welded galvanized steel grating

Mild Steel Light Steel Structure Platform Walkway Forge-Welded Bar Grating

Galvanized Steel Grating

Introducing our innovative steel grating product, featuring a robust serrated bearing bar, crafted with precision for superior performance. Thanks to its smart and efficient structural design, this remarkable grating is the go-to choice for applications demanding high load-bearing prowess or aesthetic appeal. Produced from a specified size of serrated steel, this grating undergoes a series of meticulous processes-slotting, inserting, welding, and finishing-culminating in a product capable of handling substantial loads. It stands as a trusted solution for heavy-duty industrial platforms, offering a significant safety margin. Surface treatments are versatile, including galvanizing, painting, or dipping, tailored to your needs.

Using high voltage welding equipment, weld the intersection of load bar and cross bar to form the welding grating.
1. Center pitch of load bar, there are 30mm Series and 40mm Series.
2. Center pitch of cross bar, there are 50mm Series and 100mm Series.
3. Other series also can be done as per customer's request, based on a certain quantity.

Standard: YB/T4001.1-2007, AS1657-2018, BS4592:2006, DIN24537-1:2006, ANSI NAAMM(MBG531-00).

Material Standard: GB/T700-Q235

H D Galv. Standard: GB/T13912-2002, ASTM A123, AS/NZS4680-2006, BS EN ISO1461-2009

Specification

Product Name	Customized Anti-slip Serrated Steel Grating
Material	Mild Steel(Low Carbon Steel),S235,S275JR,A36,or Stainless Steel SS304,SS316 etc.
Surface treatment	Hot dipped galvanized, polished or untreated	Grate size	as customer's request
Bearing bar width x thickness	25x3,25x4,30x3,30x4,30x5,32x5,40x5,50x5,...75x10mm
Bearing bar pitch	12.5,15,20,23.85,25,30,30.16,30.3,34.3,35,40,41,60mm. US standard:1"x3/16",11/4"x3/16",11/2"x3/16",1"x 1/4", 11/4"×1/4",11/2"x 1/4"etc.
Cross bar pitch	38,50,76,100,101.6mm or custom

Pitch of Bearing bar	Cross-bar Pitch	Specification of bearing bar(widthxthickness)
		20×3	25×3	32×3	40×3	20×5	25×5
30	100	G203/30/100	G253/30/100	G323/30/100	G403/30/100	G205/30/100	G255/30/100
	50	G203/30/50	G253/30/50	G323/30/50	G403/30/50	G205/30/50	G255/30/50
40	100	G203/40/100	G253/40/100	G323/40/100	G403/40/100	G205/40/100	G255/40/100
	50	G203/40/50	G253/40/50	G323/40/50	G403/40/50	G205/40/50	G255/40/50
60	50		G253/60/50	G253/60/50	G403/60/50	G205/60/50	G255/60/50
Pitch of Bearing bar	Cross-bar Pitch	Specification of bearing bar(widthxthickness)
		32×5	40×5	45×5	50×5	55×5	60×5
30	100	G325/30/100	G405/30/100	G455/30/100	G505/30/100	G555/30/100	G605/30/100
	50	G325/30/50	G405/30/50	G455/30/50	G505/30/50	G555/30/50	G605/30/50
40	100	G325/40/100	G405/40/100	G455/40/100	G505/40/100	G555/40/100	G605/40/100
	50	G325/40/50	G405/40/50	G455/40/50	G505/40/50	G555/40/50	G605/40/50
60	50	G325/60/50	G405/60/50	G455/60/50	G505/60/50	G555/60/50	G605/60/50

Features of Steel Grating - What is Steel Grating?
Steel Grating is welded bearing steel bars and cross twisted bars accoring to required pitch space between steel bars by steel grating welding machines.it is a grid building material.
All gratings are made using high quality standard steel materials which exhibit good hardness and high tensile strength. It is extremely strong, durable and corrosion resistance and great anti-slip performance.
Based on where the grating will be used and its load bearing requirements, steel bars are available in a range of spacing pitch, thicknesses and heights.

Surface Treatment Finishing of Steel Grating:
Generally Steel Grating is made with hot-dipped galvanized. Also zinc coating can be made according to the client's requirement.
Steel Grating can be called hot-dip galvanized steel grating,stainless steel gratings.Beautiful surface appearance and excellent performance in industry construction projects.

Materials of Steel Grating:
1) Carbon Steel Smooth Flat Bars,Carbon Steel Serrated Bars,I-Type Steel Bars.
2) Steel Twisted Square Cross Bars,Steel Round Cross Bars.
3)Stainless Steel 304 Grade Flat Bars, Stainless Steel 304 Grade Round Bars.

Packaging Details

Standard Grating Packing Method:
1. Bandage and Paperboard: Generally applies to neat steel plate;
Package Type: 2. Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength;
3. Steel Pallet: Traditional export packing.

Steel grating is widely used in the following fields:
1. Petrochemical, power and metallurgy, sewage treatment and other industrial fields.
2. Drainage systems, stairs and railings, commercial decoration and other municipal and architectural fields.
3. Bridges and tunnels, ports and ships and other transportation and marine engineering.
4. Garbage treatment plants, agricultural facilities and other environmental protection and agricultural fields.

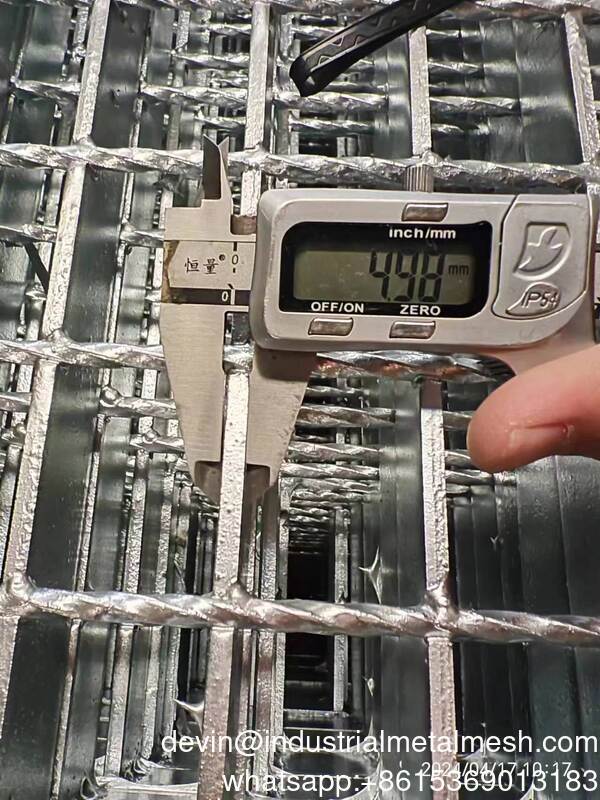

steel grating Mild Steel Light Steel Structure Platform Walkway Forge-Welded Bar Grating 1

Key Features

· Exceptional Strength-to-Weight Ratio:Engineered to support heavy loads while remaining relatively lightweight, reducing structural support requirements.
· Superior Safety:Serrated or plain surfaces provide excellent slip resistance, even in wet or oily conditions. The open design allows passage of light, air, and liquids, minimizing puddles and ice accumulation.
· Long-Lasting Durability:Manufactured from high-quality carbon steel or stainless steel, with optional hot-dip galvanizing, powder coating, or other finishes for outstanding corrosion resistance.
· Low Maintenance & Easy Installation:The modular design allows for quick cutting, fitting, and installation with standard tools. Its open structure prevents the accumulation of dirt, debris, and snow, minimizing cleaning needs.
· Versatile & Aesthetic:Available in various materials, surface types, and finishes to meet functional requirements and architectural aesthetics.
