Low-Carbon Iron Wires Welded Wire Mesh Panels Before Hot Galvanized
0,4 m, 0,5 m, 0,6 m, 0,8 m, 1,0 m, 1,25 m, 1,5 m, 2,0 m
Longueur du rouleau:
15M,30M,50M etc.
Traitement de surface:
Galvanisé à chaud ou galvanisé électriquement
Numéro de modèle:
xx-01001
Application::
Maille de clôture
E-mail:
devin@industrialmetalmesh.com
WhatsApp:
+8615369013183
Mettre en évidence:
low-carbon iron welded wire mesh
,
hot galvanized wire mesh panels
,
welded wire mesh before galvanizing

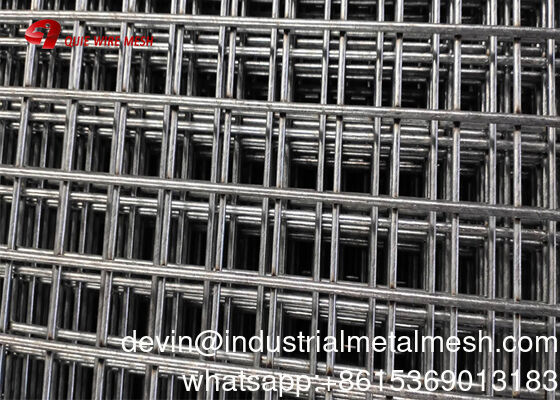

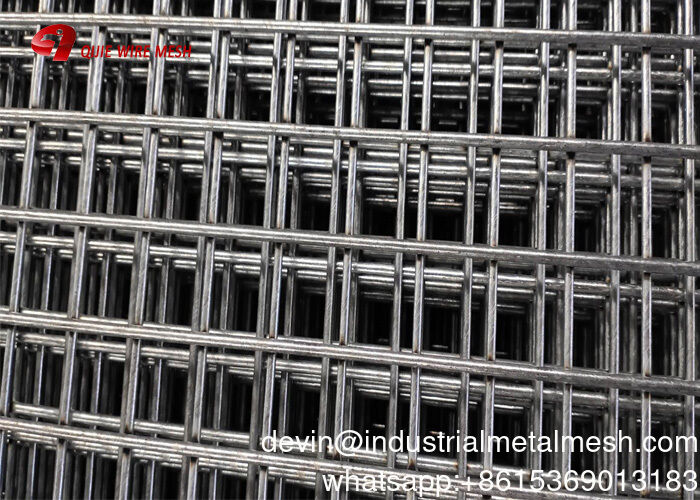

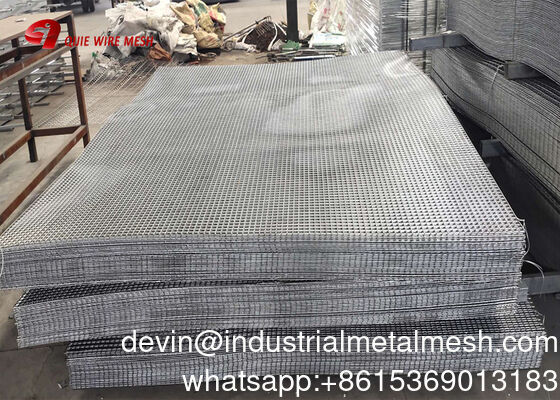

Low-Carbon Iron Wires Welded Wire Mesh Panels Before Hot Galvanized
We offer a broad selection of welded wire mesh panels, available in diverse types and specifications. Classified by application (industrial, architectural, agricultural), they are used for concrete reinforcement, fencing, and partitions. Made from premium stainless steel, our durable, corrosion-resistant panels undergo strict quality control. Customized solutions ensure adaptability to unique project demands, balancing strength and design versatility.
Welded Wire Mesh Panels are engineered for superior strength and adaptability across industrial, agricultural, and construction applications. Manufactured using high-grade stainless steel (304/316) or galvanized carbon steel, these panels resist corrosion, ensuring long-lasting performance in harsh environments.
Mesh Size Variations
Welded Wire Mesh Panels are available in grid sizes ranging from 12.7 mm (½”) to 152.4 mm (6″), with common options including 25.4 mm (1″), 50.8 mm (2″), and 101.6 mm (4″) for diverse applications.
Wire Diameter Ranges
Wire thickness varies between 1.0 mm and 10.0 mm, depending on mesh size. For example, 1/2″ grids use 1.0–2.0 mm wires, while 6″ grids support 4.0–10.0 mm diameters to enhance strength.
Standard Panel Dimensions
Common panel sizes include 3 ft × 6 ft, 4 ft × 8 ft, and metric equivalents like 1 m × 2 m or 2 m × 4 m. Larger formats like 1200 mm × 2400 mm are also standardized.
Material Grades
Welded Wire Mesh Panels are primarily made from stainless steel (Grades 304 and 316) or galvanized carbon steel, with Grade 304 being the most widely stocked option for corrosion resistance.
Weight Per Panel
Panel weight correlates with wire diameter and mesh density. For instance, a 25×25 mm stainless steel panel weighs 9.2–12.9 kg, while a 200×200 mm panel with 6 mm wires reduces to 7.1 kg.
Surface Finishes
Options include galvanized, PVC-coated, or powder-coated finishes to improve durability and weather resistance for Welded Wire Mesh Panels in outdoor environments.
Load-Bearing Capacity
Thicker wires (e.g., 5.0–8.0 mm) and smaller mesh sizes (e.g., 25×25 mm) provide higher structural strength, ideal for industrial flooring or security fencing.
Customization Flexibility
Non-standard sizes, such as 5 ft × 10 ft or 1.5 m × 3 m, and specialized wire diameters can be manufactured upon request for unique project requirements.
International Standards Compliance
Welded Wire Mesh Panels adhere to ASTM A185 (steel) or ISO 9444 (stainless steel) specifications, ensuring consistent quality and performance metrics.
Packaging and Handling
Panels are typically bundled with protective coatings or separators to prevent damage during transit, optimized for palletized shipping or containerized logistics.
Specification
Mesh
mm
Wire Diameter
mm
Panel Weight
Kg
Grade 304
Stocked
Grade 316
Stocked
25 x 25
2.50
9.2
✓
✓
25 x 25
3.00
12.9
✓
✓
25 x 50
3.00
9.7
✓
–
40 x 40
3.00
8.1
✓
✓
50 x 50
3.00
6.5
✓
✓
50 x 50
4.00
11.7
✓
✓
50 x 50
5.00
18.3
✓
✓
50 x 75
5.00
15.3
✓
–
100 x 100
3.00
3.4
✓
✓
100 x 100
5.00
9.4
✓
✓
100 x 100
6.00
13.5
✓
✓
100 x 100
8.00
24.0
–
✓
150 x 150
6.00
9.4
–
✓
200 x 200
6.00
7.1
–
✓
Features of Welded Wire Mesh Easily workable Solid construction Extremely versatile Easy to install Lightweight Can have a low resistance to wind loads Easily cut to fit
Applications of Welded Wire Mesh Welded wire mesh's combination of low cost, ease of use, and versatility make it a popular choice for many different applications. 1. Fences and gates: You'll find welded wire mesh fences and gates installed at residences and all types of commercial and industrial
properties. 2. Architectural uses such as building facades: Although welded wire fabric is known for its strength and durability, architects and designers
often use it to enhance aesthetic appeal. 3. Architectural Wire Mesh for Green Building Design: Using welded wire mesh can help achieve LEED(Leadership in Energy and Environmental
Design) credits and certification. 4. Infill panels for railings and divider walls: Woven wire infill panels are used often as partitions or divider walls due to its clean and
sometimes modern look. 5. Animal control: Farmers, ranchers, and animal control professionals use fencing made from welded wire mesh to contain livestock and
stray animals. 6. Screens for doors and windows: Welded wire mesh screens provide a sturdy material and effective insect control when installed in windows. 7. Machine guards: Use welded wire cloth guards for industrial machinery. 8. Shelving and partitions: Welded wire mesh's strength and stability enable it to serve as shelving for storing heavy products and as partitions
that promote visibility. 9. Behind-the-scenes use in plumbing, walls, and ceilings: Wire mesh provides support for pipes installed in the walls and ceilings of a structure. 10. Gardens to keep bugs away from their plants and vegetables: Mesh with a low open area percentage serves as a screen that prevents
insects from destroying plants. 11. Agriculture: To serve as barrier fencing, corn cribs, livestock shade panels, and temporary holding pens.
