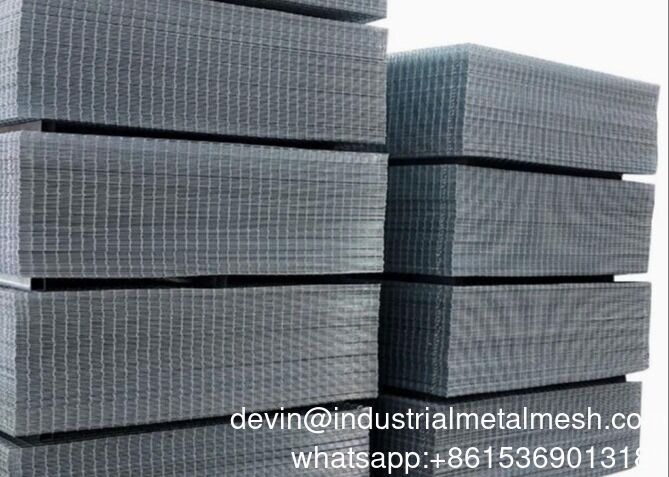

Reinforcing Welded Wire Mesh Panel for Building Construction

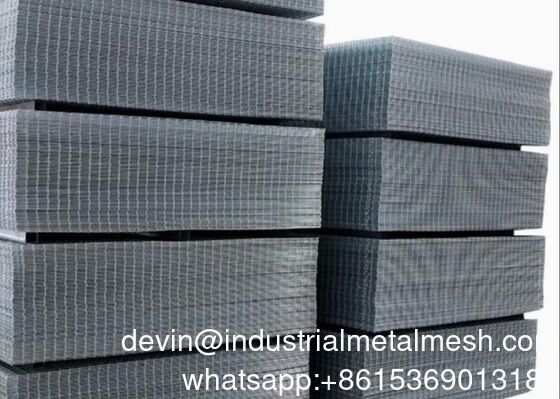

Image Grand : Reinforcing Welded Wire Mesh Panel for Building Construction

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	QIJIE
Certification:	SGS, ISO
Numéro de modèle:	QJ-WMP-01

Conditions de paiement et expédition:

Quantité de commande min:	1000 mètres carrés
Prix:	USD 0.5-5/M2
Détails d'emballage:	Palettes
Délai de livraison:	10-15 jours ouvrables
Conditions de paiement:	30% TT
Capacité d'approvisionnement:	1000 mètres carrés par jour

Contact

Description de produit détaillée

Forme du trou:	Carré, rectangle, trou long	Calibre de fil:	0.5mm-14mm, 2.0-4.0mm, BWG#12--#26,0.3-2.5mm, 0.3mm-8.0mm
Application:	Grillage de construction, treillis de clôture, bâtiment, pont, clôture de jardin	Taper:	Maillage de soudure, maille de fil électrique, panneau ou petit pain
Ouverture:	1/2 », 1/4" - 6", 1" x 2" ect	Traitement de surface:	Chaud plongé galvanisé, PVC a enduit, galvanisé/PVC a enduit, poudre enduite
Largeur:	0.5-2m, 0.5-1.8m, 300mm-2500mm, 0.5m à 2.2m, 1.2m	Longueur:	30m, 50m, 10m, 5m, 25m
Usage:	Protection, bâtiment, construction	emballage:	Palette, en vrac
Nom du produit:	le grillage soudé, galvanisé/PVC a enduit le grillage soudé	Couleur:	Argent, vert, gris, etc.
Nom:	le grillage soudé, le filet en pierre de cage, PVC a enduit le grillage soudé concret renforcé à ven	taille du trou:	5/8" comme demande de client
Diamètre du fil:	1,0 mm ~ 4,50 mm	Taille du maillage:	76,2*12,7 mm
E-mail:	devin@industrialmetalmesh.com	WhatsApp:	+8615369013183
Mettre en évidence:	welded wire mesh for construction , reinforcing wire mesh panel , building welded mesh with warranty

Reinforcing Welded Wire Mesh Panel for Building Construction

Welded wire mesh is made of low carbon steel wire, which has galvanized and PVC-coated surfaces, which have great anti-corrosion, anti-rust, and weather resistance. Firm structure and high tensile strength are also the features of welded wire mesh, which makes it widely used to make gabion, plaster walls, animal cages, and plant trellis.
Welded wire mesh can be divided into 2 types according to different applications: welded mesh panel and welded mesh roll, and welded mesh roll has better flexibility. We support customization of other requirements.
The core advantages of welded wire mesh are high strength, corrosion resistance, convenient installation, beautiful and practical, which can not only meet functional requirements, but also adapt to diverse scenarios. Choosing different treatment processes (such as zinc plating, stainless steel, plastic coating) and mesh density according to specific uses can maximize its value.
They are usually made of horizontal and vertical steel bars or wires and the welding points are usually fixed by resistance welding or arc welding to form a grid structure with certain strength and rigidity. Welded mesh panel is widely used, such as machinery, fences, guardrails, etc.

The specifications for welded wire mesh can vary based on the intended use, but common aspects include:

1,Wire Diameter: Ranges from 1.0 mm to 6.0 mm, affecting the mesh's strength and flexibility.

2,Mesh Opening Size: Typically ranges from 12 mm x 12 mm to 50 mm x 50 mm, allowing for different levels of airflow and visibility.

3,Sheet Size: Common dimensions include 1m x 2m, 2m x 4m, or custom sizes based on project requirements.

4,Material: Often made from stainless steel, galvanized steel, or PVC-coated wire for enhanced corrosion resistance. 5,Surface Treatment: Options include hot-dip galvanizing, electro-galvanizing, or plastic coating for added durability.

1. Welded wire mesh panel Material:

>low carbon steel wireQ195
>galvanized iron wire
>pvc coated iron wire
>stainless steel wire

2. Welded wire mesh panel type

> Galvanized Welded Mesh Panels
> Welded Stainless Steel Wire Mesh Panels
>Hot-dip Zinc Plating Welded Mesh Panels
>PVC coated Welded Mesh Panels

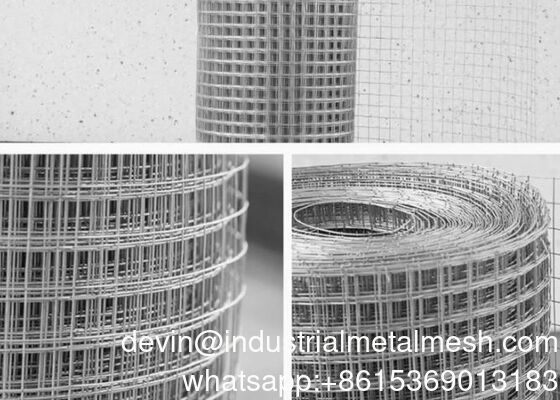

>Galvanized welded wire mesh rolls
>Pvc coated welded wire mesh rolls

3. Welded wire mesh panel Characteristics:

> High intensity anti-high temperature.
> Better strength and strong integration
> Flat & even surface and strong structure
> Anti-rust property
>Not easy to loosen even be cut into parts or exerted force on the parts

> A long service life and the service life can reach to several decades

4.Welded wire mesh panel Processing

a>Hot dipped galvanizing before welding
b>Hot dipped galvanizing after welding
c>Welding with iron wire
d>Electric galvanizing after welding
e>PVC coated welded wire mesh panel

Corrosion resistance:

Because it is stainless steel, containing chromium, nickel and other alloying elements, so that it has strong corrosion resistance, can resist the erosion of atmosphere, water, chemical substances, etc., in the humid, acid and alkali environment can also be used for a long time without rust.

Solid welding:

The stainless steel wire is connected together through the electric welding process, and the solder joint is firm and evenly distributed, ensuring the stability of the structure of the entire network, and it is not easy to open welding and break.

High strength:

the strength characteristics of stainless steel itself coupled with solid welding, so that the welding mesh has a high tensile strength and impact resistance, can withstand a certain weight of objects or external impact.

Bright surface:

The surface of stainless steel is smooth and glossy, and the appearance is exquisite after being made into electric welding mesh.

Flat mesh surface:

the processing technology ensures that the mesh surface is flat, there is no obvious uneven, whether it is close observation or for decorative purposes, it is more beautiful.

Welded Wire Mesh Panel is made of superior quality welded mesh, with flat even surface, firm structure, be used extensively in building, food, agriculture and so on.
