65mn Steel Woven Wire Mesh Mining Screen Mesh for Crusher and Vibrating Screen

Image Grand : 65mn Steel Woven Wire Mesh Mining Screen Mesh for Crusher and Vibrating Screen

Détails sur le produit:

Lieu d'origine:	Hebei, Chine
Nom de marque:	Xmesh
Certification:	SGS
Numéro de modèle:	MVSM

Conditions de paiement et expédition:

Quantité de commande min:	10 pièces
Détails d'emballage:	Palettes
Délai de livraison:	15-25 jours
Conditions de paiement:	TT/LC
Capacité d'approvisionnement:	1000 pièces par mois

Contact

Description de produit détaillée

Matériel:	fil d'acier inoxydable	Taper:	Grillage serti par replis
Application:	tremplin tissé	Style tissage:	Armure toile
Technique:	Tissé	Numéro de modèle:	Maille d'écran de vibration
Service de traitement:	Pliage, SOUDAGE, Déroulage, Découpe, POINÇONNAGE	Délai de livraison:	31-45 jours
Traitement de surface:	galvanisé ou peint.	Taille du maillage:	1mm - 100mm.
Type de trou:	fente carrée, rectangulaire et longue.	taille d'ouverture:	2.0 - 80,0 millimètres
Diamètre du fil:	0,8 - 8 millimètres	largeur:	1,2 m
Longueur:	30m	CROCHET:	crochet avec la tôle d'acier
degré de crochet:	60Degree	Type de tissage:	Double cuir embouti
E-mail:	devin@industrialmetalmesh.com	WhatsApp:	+8615369013183
Mettre en évidence:	65mn steel mining screen mesh , woven wire mesh for crusher , vibrating screen mining mesh

65mn Steel Woven Wire Mesh Mining Screen Mesh for Crusher and Vibrating Screen

Product Description

Our 65Mn woven vibrating screen mesh is specially engineered for heavy-duty mining and aggregate screening applications. Made of high-quality 65Mn spring steel with heat treatment process, it achieves a hardness of 55-62 HRC, ensuring superior wear resistance and long service life. Compliant with GOST, GB and AISI standards, it is fully customizable in mesh size, wire diameter and sheet size to meet the specific needs of Russian and Central Asian customers.

Typical Applications:

Mining: Ore extraction, coal washing, and mineral processing.
Quarry & Aggregate: Stone crushing, sand screening, and gravel classification.
Construction: Demolition waste sorting and construction material screening.
Industrial: Chemical processing, grain handling, and waste management.

1.Material:
1) Stainless steel wire(201,202,302,304,304L,310,316,316L)
2) High carbon steel wire,low carbon steel,medium carbon steel,Mn steel wire.
3) Galvanized iron wire,galvanized steel wire,non-ferrous metal wire. Other materials are available on request.
2.Application:
Crimped wire mesh is used as fence or filters in a lot of industries;Heavy Duty Crimped wire mesh are also named Quarry Mesh,it is mostly used as screen in mining,coal factory,construction and other industries.
3.Supply form: in rolls and panels.1mX15m,1.5mX15m,2.0mX20m.etc.
4.Usage:
Used for screen in mine,coal factory,industry,architecture,filter a sand grain,filter the liquid and air,also can be used in the security in machiney fittings.

Technical Specifications

(Custom configurations available upon request.)

Product Type	Key Features	Primary Applications
358 Security Mesh	9.5mmx3.15mm aperture pattern, anti-climb design	Prisons,facilities, high-security zones
358 Anti-Scale Mesh	Reinforced 6mm thick wires, tamper-resistant connections	Airport perimeters, critical infrastructure
Workshop Partition Panels	Modular design, easy installation, transparent or solid options	Factory floors, warehouse divisions, equipment zones
Elevator Protection Doors	Interlocking mechanism, safety sensors, reinforced frames	Construction sites, industrial elevator shafts
Anti-Glare Highway Barriers	Wave-shaped design, 85% visibility maintenance, UV resistant	Expressways, viaducts, traffic separation areas
Airport Perimeter Fencing	358 mesh standard, 3.0m height, anti-dig base design	Airfield boundaries, restricted access areas
Prison Security Fencing	76.2mmx12.7mm mesh, 6mm diameter wires, anti-climb topping	Correctional facilities, detention centers

In its simplest form, the mining screen is a surface having many apertures, or openings, usually with uniform dimensions. Particles presented
to that surface will either pass through or be retained, according to whether the particles are smaller or larger than the governing dimensions
of the aperture. The efficiency of screening is determined by the degree of perfection of separation of the material into size fractions above
or below the aperture size.
There are numerous different types of mining screens available. Our products are fully customizable to fit most applications, including
capacity requirements. We adopt high-strength stainless steel to provide high abrasion, corrosion and clogging resistance in the harshest
conditions.

MATERIALS & PARAMETERS

Our main materials are carbon steel and stainless steel wires, and their parameters are listed as below.
Technical Parameters of Carbon Steel Wire

Grade	Chemical Composition(%)
Grade	C	Si	Mn
45	0.42-0.50	0.52-0.60	0.50-0.80
50	0.47-0.55
55	0.52-0.60
60	0.57-0.65
65	0.62-0.70
70	0.67-0.75
65Mn	0.62-0.70		0.90-1.20
72A	0.15-0.75	0.15-0.75	0.30-0.60

Technical Parameters of Stainless Steel Wire

Grade	Chemical Composition(%)
Grade	C	Si	Mn	Cr
304	≤0.08	8.0-10.5	≤2.0	18.0-20.0
321	≤0.08	9.0-12.0	≤2.0	17.0-19.0
316	≤0.08	10.0-14.0	≤2.0	16.0-18.0
2205	≤0.03	4.5-6.5	≤2.0	21.0-23.0
2207	≤0.03	6-8	≤1.2	24.0-26.0

Aperture Square Weave	Light duty Wire Dia kg/m²OA%			Medium Wire Dia kg/m OA%			Heavy Duty Wire Dia kg/m²OA%
2.00							1.37	7.1	35
3.15				2.00	9.9	37	2.50	14.1	31
4.0	2.00	8.50	44	2.50	12.2	38	3.05	16.8	32
5.0	2.00	7.80	51	2.50	16.6	44	3.05	14.7	38
5.6	2.50	9.80	48	3.05	13.7	41	4.00	21.2	34
6.35	2.50	8.89	51	3.05	12.6	46	4.00	19.6	38
6.8	2.50	9.00	51	3.05	10.0	44	4.00	19.7	37
7.1	2.50	8.80	55	3.05	11.9	48	4.00	18.3	41
8	2.50	10.80	54	4.00	16.9	44	5.00	24.4	38
9	3.05	9.80	55	4.00	15.6	48	5.00	22.7	44
10	3.05	9.10	58	4.00	14.5	51	5.00	21.2	44
11.2	3.05	10.40	54	5.00	19.6	48	5.60	28.6	44
12.5	4.00	12.30	57	5.00	18.1	51	5.60	20.0	47
14	4.00	16.70	54	5.00	20.0	51	6.80	24.6	48
16	5.00	15.10	58	5.60	19.5	56	6.80	22.6	51
18	5.00	14.50	58	6.80	20.7	55	7.10	25.0	51
20	5.60	14.00	61	6.80	19.2	58	7.10	24.0	54
22	5.60	17.60	61	7.10	21.5	57	8.00	26.7	54
25	6.80	16.10	64	7.10	20..1	60	8.00	24.6	57
28	7.00	14.70	63	8.00	19.0	61	9.00	27.8	57
32	8.00	20.60	64	9.00	26.0	60	10.00	30.4	58
38	8.00	18.70	67	9.00	28.1	64	10.00	27.9	61
40	9.00	21.00	67	10.00	25.4	64	11.20	31.1	61
45	9.00	19.50	69	10.00	23.4	67	11.20	28.4	64
50	10.00	23.20	69	11.20	26.0	67	12.50	31.8	64
56	10.00	19.20	72	11.20	28.7	69	12.50	29.0	67
63	10.00	17.40	75	11.20	24.5	72	12.50	25.1	70
76.2	10.00	14.80	78	11.20	16.0	75	12.50	20.0	73
80	10.00	16.00	79	11.20	17.5	72	12.50	21.5	75
90	10.00	14.00	81	11.20	15.7	79	12.70	19.4	77
100	10.00	10.00	82	11.20	14.3	81	12.70	17.6	79

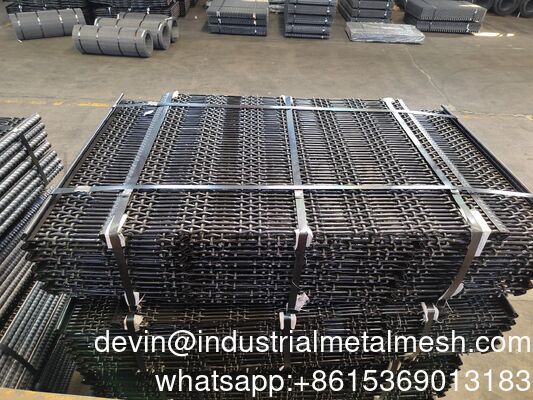

65mn Steel Woven Wire Mesh Mining Screen Mesh for Crusher and Vibrating Screen 1

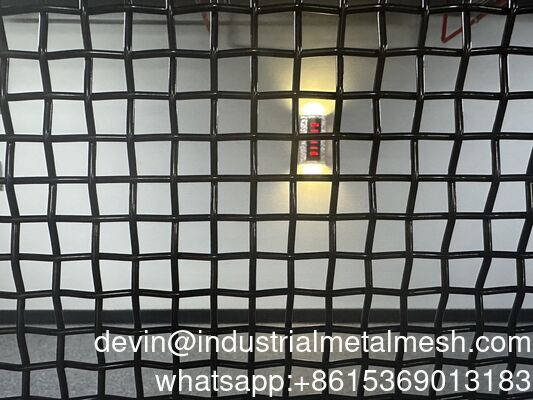

According to the different shapes we offer, our self-cleaning screen can be divided into three categories as shown below. 65mn Steel Woven Wire Mesh Mining Screen Mesh for Crusher and Vibrating Screen 2

ADVANTAGE OF MINING SCREEN

High mechanical strength, large carrying capability
High abrasion and chemical corrosion resistance
Excellent vibration and impact resistance
Large screening area
A long service life

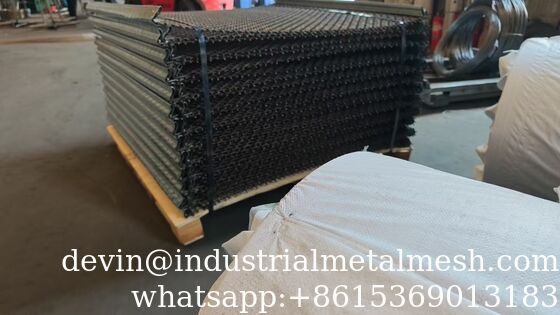

65mn Steel Woven Wire Mesh Mining Screen Mesh for Crusher and Vibrating Screen 3
