Ss 304 316 316L 321 Crimped Mesh for Coal Mine Vibrating Screen Crimped Wire Mesh

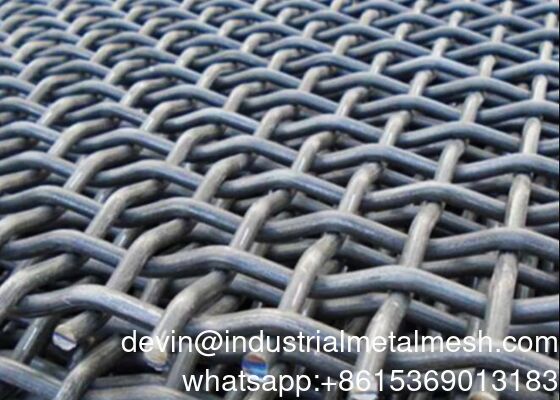

Image Grand : Ss 304 316 316L 321 Crimped Mesh for Coal Mine Vibrating Screen Crimped Wire Mesh

Détails sur le produit:

Lieu d'origine:	Hebei, Chine
Nom de marque:	Xmesh
Certification:	SGS
Numéro de modèle:	MVSM

Conditions de paiement et expédition:

Quantité de commande min:	10 pièces
Détails d'emballage:	Palettes
Délai de livraison:	15-25 jours
Conditions de paiement:	TT/LC
Capacité d'approvisionnement:	1000 pièces par mois

Contact

Description de produit détaillée

Matériel:	fil d'acier inoxydable	Taper:	Grillage serti par replis
Application:	tremplin tissé	Style tissage:	Armure toile
Technique:	Tissé	Numéro de modèle:	Maille d'écran de vibration
Service de traitement:	Pliage, SOUDAGE, Déroulage, Découpe, POINÇONNAGE	Délai de livraison:	31-45 jours
Traitement de surface:	galvanisé ou peint.	Taille du maillage:	1mm - 100mm.
Type de trou:	fente carrée, rectangulaire et longue.	taille d'ouverture:	2.0 - 80,0 millimètres
Diamètre du fil:	0,8 - 8 millimètres	largeur:	1,2 m
Longueur:	30m	CROCHET:	crochet avec la tôle d'acier
degré de crochet:	60Degree	Type de tissage:	Double cuir embouti
E-mail:	devin@industrialmetalmesh.com	WhatsApp:	+8615369013183
Mettre en évidence:	SS 304 crimped wire mesh , 316L vibrating screen mesh , coal mine crimped mesh

Ss 304 316 316L 321 Crimped Mesh for Coal Mine Vibrating Screen Crimped Wire Mesh

Product Description

Crimped Wire Mesh

Architectural Flat Wire Mesh Crimped Woven Wire Mesh Brass Bronze Stainless Steel Woven Metal Decorative Mesh
Crimped Wire Mesh 4 6 8 10 12 15 Mesh Ss 304 316 316L Stainless Steel Crimped Wire Mesh
304 316 316L 321 Stainless Steel Crimped Wire Mesh for Coal Mine Screen
Small Aperture Steel Wire Rope Mesh Hexagon Hole Hot-dip Galvanized Fence Protective Net Model 003 Crimped Technique
304 304L 316 316L Double Crimped Stainless Steel Wire Mesh 3 Mesh for Metal Building Materials for Machine Use

High Manganese Steel Mine Sieving Sand Vibrating Screen Crimp Wire Mesh With Hook
High Manganese Steel Crimped Wire Mesh Crusher Screen Mesh Vibrating Sieve Shaker Sieve
High Tensile Strength 65 Mn Crimped Vibrating Screen Mesh for Mine

Crimped Wire Mesh Vibrating Screen Stainless Steel 304 310S Quarry Mesh for Mineral
High Quality Square Aperture Electro Galvanized Crimped Wire Mesh for Vibrating and Filtration
Stainless Steel Architectural Mining Screen Mesh Woven Wire Locked Crimped Mesh

1.Material:
1) Stainless steel wire(201,202,302,304,304L,310,316,316L)
2) High carbon steel wire,low carbon steel,medium carbon steel,Mn steel wire.
3) Galvanized iron wire,galvanized steel wire,non-ferrous metal wire. Other materials are available on request.
2.Application:
Crimped wire mesh is used as fence or filters in a lot of industries;Heavy Duty Crimped wire mesh are also named Quarry Mesh,it is mostly used as screen in mining,coal factory,construction and other industries.
3.Supply form: in rolls and panels.1mX15m,1.5mX15m,2.0mX20m.etc.
4.Usage:
Used for screen in mine,coal factory,industry,architecture,filter a sand grain,filter the liquid and air,also can be used in the security in machiney fittings.

Technical Specifications

(Custom configurations available upon request.)

Product Type	Key Features	Primary Applications
358 Security Mesh	9.5mmx3.15mm aperture pattern, anti-climb design	Prisons,facilities, high-security zones
358 Anti-Scale Mesh	Reinforced 6mm thick wires, tamper-resistant connections	Airport perimeters, critical infrastructure
Workshop Partition Panels	Modular design, easy installation, transparent or solid options	Factory floors, warehouse divisions, equipment zones
Elevator Protection Doors	Interlocking mechanism, safety sensors, reinforced frames	Construction sites, industrial elevator shafts
Anti-Glare Highway Barriers	Wave-shaped design, 85% visibility maintenance, UV resistant	Expressways, viaducts, traffic separation areas
Airport Perimeter Fencing	358 mesh standard, 3.0m height, anti-dig base design	Airfield boundaries, restricted access areas
Prison Security Fencing	76.2mmx12.7mm mesh, 6mm diameter wires, anti-climb topping	Correctional facilities, detention centers

In its simplest form, the mining screen is a surface having many apertures, or openings, usually with uniform dimensions. Particles presented
to that surface will either pass through or be retained, according to whether the particles are smaller or larger than the governing dimensions
of the aperture. The efficiency of screening is determined by the degree of perfection of separation of the material into size fractions above
or below the aperture size.
There are numerous different types of mining screens available. Our products are fully customizable to fit most applications, including
capacity requirements. We adopt high-strength stainless steel to provide high abrasion, corrosion and clogging resistance in the harshest
conditions.

MATERIALS & PARAMETERS

Our main materials are carbon steel and stainless steel wires, and their parameters are listed as below.
Technical Parameters of Carbon Steel Wire

Grade	Chemical Composition(%)
Grade	C	Si	Mn
45	0.42-0.50	0.52-0.60	0.50-0.80
50	0.47-0.55
55	0.52-0.60
60	0.57-0.65
65	0.62-0.70
70	0.67-0.75
65Mn	0.62-0.70		0.90-1.20
72A	0.15-0.75	0.15-0.75	0.30-0.60

Technical Parameters of Stainless Steel Wire

Grade	Chemical Composition(%)
Grade	C	Si	Mn	Cr
304	≤0.08	8.0-10.5	≤2.0	18.0-20.0
321	≤0.08	9.0-12.0	≤2.0	17.0-19.0
316	≤0.08	10.0-14.0	≤2.0	16.0-18.0
2205	≤0.03	4.5-6.5	≤2.0	21.0-23.0
2207	≤0.03	6-8	≤1.2	24.0-26.0

Aperture Square Weave	Light duty Wire Dia kg/m²OA%			Medium Wire Dia kg/m OA%			Heavy Duty Wire Dia kg/m²OA%
2.00							1.37	7.1	35
3.15				2.00	9.9	37	2.50	14.1	31
4.0	2.00	8.50	44	2.50	12.2	38	3.05	16.8	32
5.0	2.00	7.80	51	2.50	16.6	44	3.05	14.7	38
5.6	2.50	9.80	48	3.05	13.7	41	4.00	21.2	34
6.35	2.50	8.89	51	3.05	12.6	46	4.00	19.6	38
6.8	2.50	9.00	51	3.05	10.0	44	4.00	19.7	37
7.1	2.50	8.80	55	3.05	11.9	48	4.00	18.3	41
8	2.50	10.80	54	4.00	16.9	44	5.00	24.4	38
9	3.05	9.80	55	4.00	15.6	48	5.00	22.7	44
10	3.05	9.10	58	4.00	14.5	51	5.00	21.2	44
11.2	3.05	10.40	54	5.00	19.6	48	5.60	28.6	44
12.5	4.00	12.30	57	5.00	18.1	51	5.60	20.0	47
14	4.00	16.70	54	5.00	20.0	51	6.80	24.6	48
16	5.00	15.10	58	5.60	19.5	56	6.80	22.6	51
18	5.00	14.50	58	6.80	20.7	55	7.10	25.0	51
20	5.60	14.00	61	6.80	19.2	58	7.10	24.0	54
22	5.60	17.60	61	7.10	21.5	57	8.00	26.7	54
25	6.80	16.10	64	7.10	20..1	60	8.00	24.6	57
28	7.00	14.70	63	8.00	19.0	61	9.00	27.8	57
32	8.00	20.60	64	9.00	26.0	60	10.00	30.4	58
38	8.00	18.70	67	9.00	28.1	64	10.00	27.9	61
40	9.00	21.00	67	10.00	25.4	64	11.20	31.1	61
45	9.00	19.50	69	10.00	23.4	67	11.20	28.4	64
50	10.00	23.20	69	11.20	26.0	67	12.50	31.8	64
56	10.00	19.20	72	11.20	28.7	69	12.50	29.0	67
63	10.00	17.40	75	11.20	24.5	72	12.50	25.1	70
76.2	10.00	14.80	78	11.20	16.0	75	12.50	20.0	73
80	10.00	16.00	79	11.20	17.5	72	12.50	21.5	75
90	10.00	14.00	81	11.20	15.7	79	12.70	19.4	77
100	10.00	10.00	82	11.20	14.3	81	12.70	17.6	79

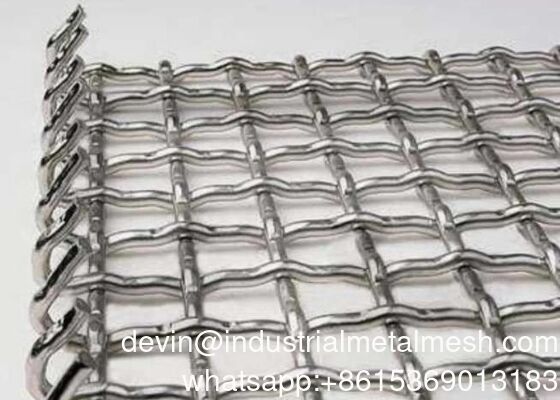

Ss 304 316 316L 321 Crimped Mesh for Coal Mine Vibrating Screen Crimped Wire Mesh 1

According to the different shapes we offer, our self-cleaning screen can be divided into three categories as shown below. Ss 304 316 316L 321 Crimped Mesh for Coal Mine Vibrating Screen Crimped Wire Mesh 2

ADVANTAGE OF MINING SCREEN

High mechanical strength, large carrying capability
High abrasion and chemical corrosion resistance
Excellent vibration and impact resistance
Large screening area
A long service life

Ss 304 316 316L 321 Crimped Mesh for Coal Mine Vibrating Screen Crimped Wire Mesh 3
