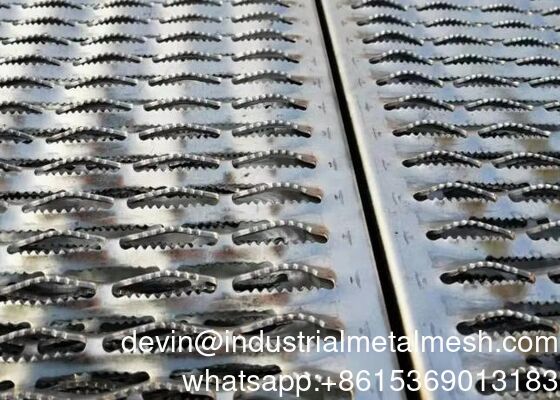

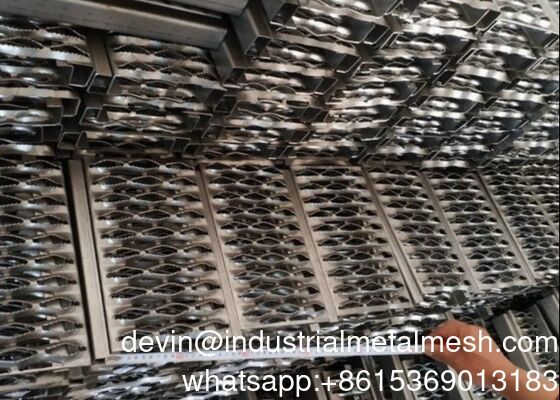

Heavy Duty Diamond Holes Grip Strut Plank Catwalk Grating
The grip strut plank grating includes regular and heavy duty types, which can be 10' or 12' lengths and 4.75'' to 24'', diamonds
of ,channel heights of , metal wall thick of 12 & 14 ga. Pre-Galvanized and Plain Steel, 10 & 12 ga. 5052-H32 Aluminum, 16 ga.Stainless Steel 304 and 316 ,Widths 4-3/4'', 7'', 9-1/2'', 11-3/4'', 18-3/4'', 24'' , Heights 1-1/2'', 2'', 2-1/2'',3''Lengths,or cut to size, with necessary accessories of splice plates, anchor plates, diamond washer bolt kits.
Notice: The channel depth and metal thick are the key of high load capacity.
Grip Strut Safety Plank Grating Advantages
√ Reducing accident rates by providing a tiny serrated surface in all directions when walking
√ Meet American Federal Standard RR-G-1602D and OSHA requirements
√ Lightweight to assemble easily
√ High strength to provide enough load capacity and longer spans
√ Professional grating devices in different applications for you
√ Right angle channel bending to enlarge the higher strength and long life
√ Open Diamond design allowing a clean surface out of fluids, mud, chips, and debris.
√ No need to maintain

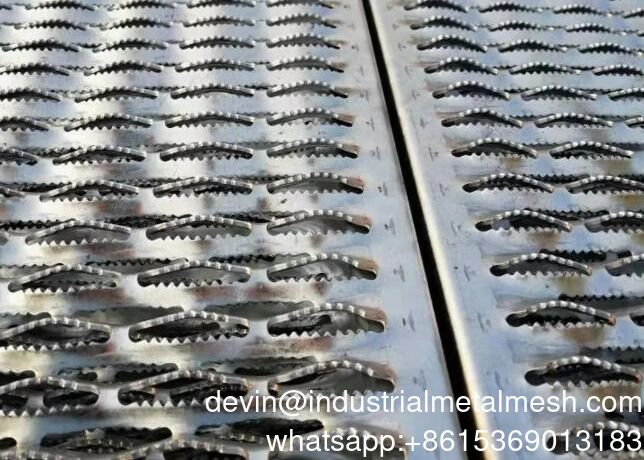

Grip struct perforated steel grating
Diamond Grip Strut Safety Plank Grating provides a maximum safety and slip resistant option against mud, ice, snow, grease, oil or detergents on plank, walkways, catwalks, stairs, etc. The plank grating is usually made of lightweight Low carbon steel Q235, pre-galvanized steel plate, Stainless steel 304 or 316, go througn cutting the right size easily, punching the serrated diamond hole, and bending into depth as your required.
The grip strut plank grating includes regular and heavy duty types, which can be 10' or 12' lengths and 4.75'' to 24'', diamonds
of ,channel heights of , metal wall thick of 12 & 14 ga. Pre-Galvanized and Plain Steel, 10 & 12 ga. 5052-H32 Aluminum, 16 ga.Stainless Steel 304 and 316 ,Widths 4-3/4'', 7'', 9-1/2'', 11-3/4'', 18-3/4'', 24'' , Heights 1-1/2'', 2'', 2-1/2'',3''Lengths,or cut to size, with necessary accessories of splice plates, anchor plates, diamond washer bolt kits.
Notice: The channel depth and metal thick are the key of high load capacity.
- Grip struct perforated steel grating is a one-piece metal plank grating manufactured from a single sheet with formed side channels. The perforated buttons provide a walking surface that is slip resistant in all directions. Open area of approximately 35% allow fluids, ice, and mud to easily flow through the grating. The walking surface of Grip has resiliency that cushions footfalls, thus decreasing worker fatigue and increasing plant productivity. Benefits of Perf-O Grip include:
- Slip-resistant walking surface
- Easy to fabricate and install
- Safe, versatile, and durable
- Low maintenance
| Item No. |
Item Description |
Standard Width |
Standard Channel Depth |
Standard Length |
| 1 |
2-Diamond Plank |
4.75'' (120.65mm) |
1.5'', 2'' and 2.5''
(38.1mm, 50.8mm and 63.5mm)
|
10' and 12'
(3048mm and 3657.6mm)
|
| 2 |
3-Diamond Plank |
7''
(120.65mm)
|
1.5'', 2'', 2.5'' and 3''
(38.1mm, 50.8mm, 63.5mm and 76.2mm)
|
10' and 12'
(3048mm and 3657.6mm)
|
| 3 |
4-Diamond Plank |
9.5''
(241.3mm)
|
1.5'', 2'', 2.5'' and 3''
(38.1mm, 50.8mm, 63.5mm and 76.2mm)
|
10' and 12'
(3048mm and 3657.6mm)
|
| 4 |
5-Diamond Plank |
11.75''
(298.45mm)
|
1.5'', 2'', 2.5'' and 3''
(38.1mm, 50.8mm, 63.5mm and 76.2mm)
|
10' and 12'
(3048mm and 3657.6mm)
|
| 5 |
8-Diamond Plank |
18.75''
(476.25mm)
|
1.5'', 2'', 2.5'' and 3''
(38.1mm, 50.8mm, 63.5mm and 76.2mm)
|
10' and 12'
(3048mm and 3657.6mm)
|
| 6 |
10-Diamond Plank |
24''
(609.6mm)
|
2'' and 3''
(50.8mm and 76.2mm)
|
10' and 12'
(3048mm and 3657.6mm)
|
| 7 |
10-Diamond Walkway |
24''
(609.6mm)
|
4.5''
(114.3mm)
|
10' and 12'
(3048mm and 3657.6mm)
|
